7:15 AM. Production starts at 7:30. Your team calls: "Drive fault on Line 3 — again." Fault code: OH1 (Overheat). You reset it. Line runs. Problem returns next week. This frustrating cycle costs Indian plants millions in lost output — and it is entirely preventable.
Reason 1 — The Hidden Hot Spot
"We Have AC in the Room" — But the Panel Still Overheats
Most plants believe that a room air conditioner keeps their electrical panels cool. In reality, control panels are sealed enclosures (IP54/IP55). Cool room air never reaches inside. Every watt of thermal heat generated by running drives has absolutely nowhere to escape.
A typical MCC panel containing 2 × 37kW VFDs generates:
- VFD semiconductor switching losses: ~1,850W continuous
- Choke / reactor magnetic losses: ~370W additional
- Auxiliary transformers & contactors: ~200W more

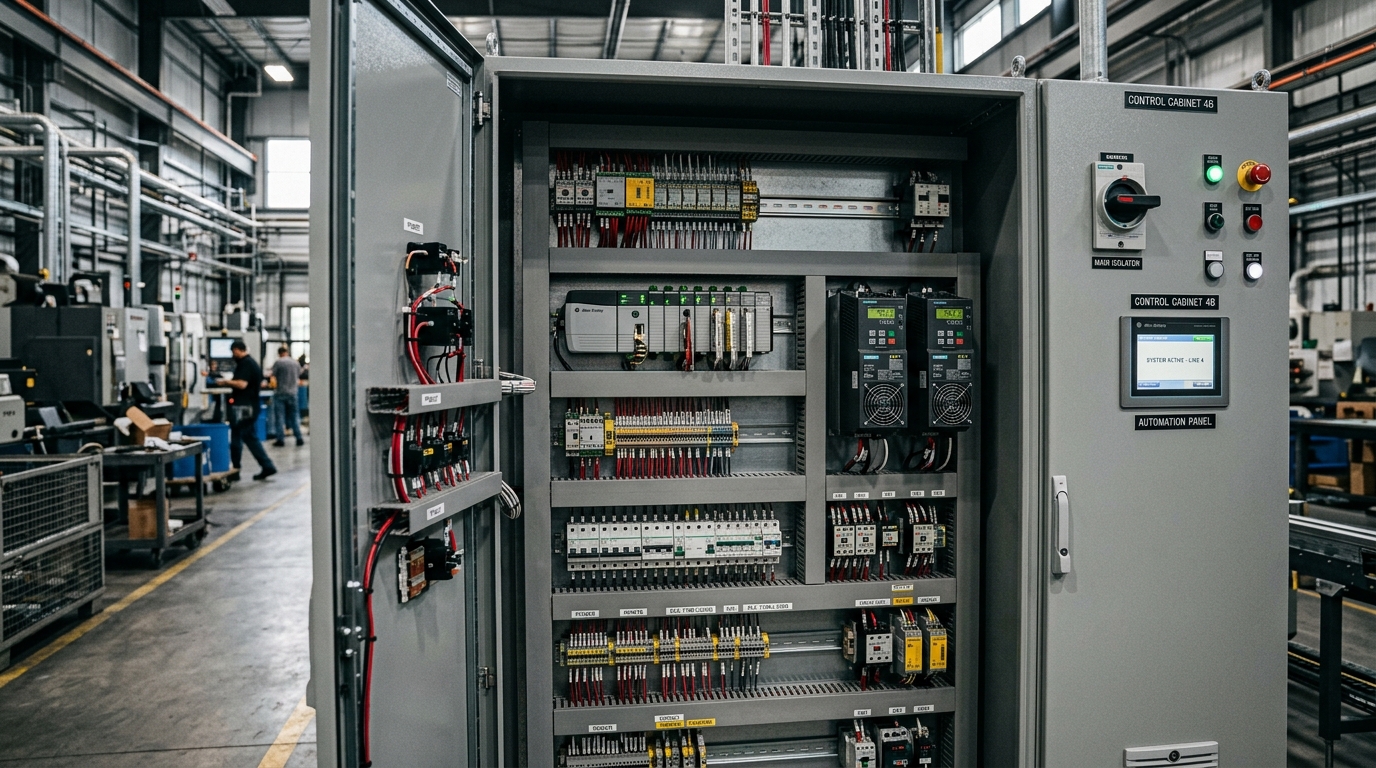

Figure 1: Detailed internal wiring and electrical components generate concentrated thermal losses within sealed panels, making active cooling mandatory.
The Result:
Internal panel temperature = 50–60°C. Room temperature = 28°C. That steep 30°C delta is what triggers the critical OH1 trips — not a fault within the VFD unit itself.
Reason 2 — Using the Wrong Cooling System
Comfort Split AC vs. Precision Panel AC — They Are Not Interchangeable
A split AC unit is designed to cool large, open environments for human comfort comfort levels. A panel AC is explicitly engineered to cool sealed metal enclosures loaded with heavy electronics. At Indian summer peaks (45–50°C), comfort split units suffer sharp capacity degradation while the heat load in the drive panels climbs unchecked.
Reason 3 — The Cost Mistake
Saving ₹15,000 on Cooling → Losing ₹10 Lakhs in Downtime
When plant managers compromise on thermal management systems to save nominal capital budgets, real-world operation numbers reveal the high hidden costs of that decision:
"Downtime isn't just an inconvenience — it's a massive financial event. Sparing a few thousands on proper cooling to lose lakhs per shift is the worst economic tradeoff a plant can make."
The Thermal Audit Formula
Calculate your exact cooling panel capacity parameters with PIMA's standardized audit formula:
Example: Single 37kW VFD panel → (925W + 185W) × 1.25 = 1,387W needed → Choose PAC1500 model.
Quick Audit Checklist
Review your plant drive panel cooling systems using PIMA's emergency checklist:
- No Panel AC installed? → Guaranteed high-risk thermal trips during Indian summer peak shifts.
- Reliance on simple ventilation fans? → Blows high ambient, humid factory air inside. Clogs electronics.
- Unfiltered standard comfort split systems? → Clogs filters instantly on dust, drops heat extraction capabilities.
- No built-in digital controller monitoring? → Cannot track cooling cycle parameters, risks undetected compressor damage.
Conclusion
If your VFD lines are tripping during summer afternoons, the solution is not replacing the drives with expensive alternatives — it is installing the correct cooling panel system. Sizing your heat loads accurately ensures consistent performance and maximizes plant output year-round.
